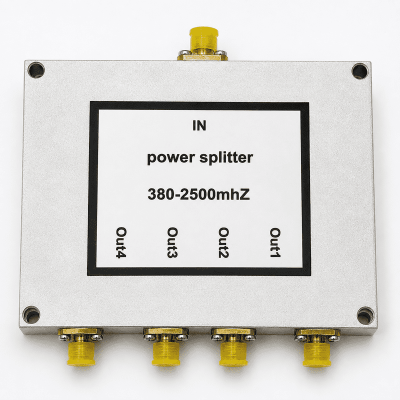

4-Way RF Power Splitter (380 MHz – 2500 MHz)
The 4-Way Power Splitter is a high-performance passive RF component designed to divide a single RF input signal into four equal output signals while maintaining excellent amplitude and phase balance. Operating across the 380 MHz to 2500 MHz frequency range, it is ideal for wireless communication systems, distributed antenna systems (DAS), RF laboratories, test benches, and signal distribution networks.
Guaranteed Safe Checkout:
Key Features
- Frequency Range: 380 MHz to 2500 MHz
- Four Equal Output Ports
- Low Insertion Loss
- Excellent Port Isolation
- High Return Loss
- Good Amplitude Balance
- Excellent Phase Matching
- 50 Ω Impedance
- SMA Female Connectors
- Rugged Aluminum Housing
- Compact Design
- Reliable Long-Term Performance
- Suitable for Indoor and Outdoor Enclosures
- RoHS Compliant
Applications
- RF Signal Distribution
- Distributed Antenna Systems (DAS)
- Cellular Networks
- GSM / LTE Systems
- 5G Sub-6 GHz Networks
- Wireless Communication
- RF Laboratories
- Test & Measurement
- Signal Monitoring
- Antenna Arrays
- RF Development
- Research & Educational Laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 4-Way RF Power Splitter |
| Frequency Range | 380 MHz – 2500 MHz |
| Number of Outputs | 4 |
| Impedance | 50 Ω |
| Connector Type | SMA Female |
| Input Connector | 1 × SMA Female |
| Output Connectors | 4 × SMA Female |
| Power Division | Equal (1:4) |
| Insertion Loss (Typical) | ≤ 1.5 dB (excluding theoretical split loss) |
| Theoretical Split Loss | 6.0 dB |
| Total Insertion Loss | ≤ 7.5 dB |
| Return Loss | ≥ 18 dB |
| VSWR | ≤ 1.30 : 1 |
| Isolation Between Output Ports | ≥ 20 dB |
| Amplitude Balance | ±0.5 dB |
| Phase Balance | ±5° |
| Average Input Power | 50 W Max |
| Peak Input Power | 100 W Max |
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −55°C to +100°C |
| Housing Material | CNC Machined Aluminum |
| Surface Finish | Silver Anodized |
| Mounting | Four Corner Mounting Holes |
| RoHS | Compliant |
Package Includes
- 1 × 4-Way RF Power Splitter
- Protective Connector Caps
- Quality Inspection Report (Optional)
