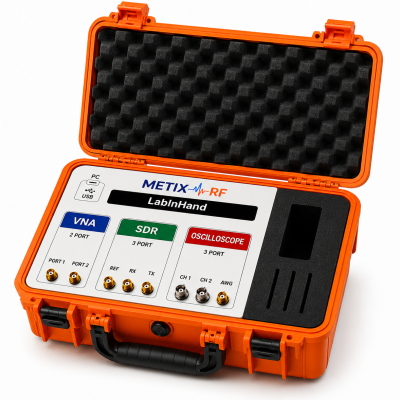

Lab In Hand – Portable RF Engineering Platform
Lab In Hand is a compact, all-in-one RF engineering platform that combines multiple RF measurement instruments into a single portable solution. Designed for education, research, product development, and field testing, it enables engineers and students to perform accurate RF measurements anytime, anywhere.
The platform integrates a Vector Network Analyzer (VNA), Software Defined Radio (SDR), and Oscilloscope in a rugged portable enclosure, providing a convenient alternative to multiple bench-top instruments.
Guaranteed Safe Checkout:
Lab In Hand
Portable RF Engineering Platform
Lab In Hand is an innovative portable RF laboratory developed by Metix RF to simplify RF measurement, experimentation, and development. The system integrates essential RF instruments into one compact, rugged enclosure, making it suitable for laboratories, classrooms, research centers, manufacturing environments, and field operations.
Whether you are testing RF filters, antennas, amplifiers, or communication systems, Lab In Hand provides professional RF measurement capabilities in a portable format.
Key Features
✔ Compact and Portable Design
✔ Plug & Play Operation
✔ Rugged Field-Ready Enclosure
✔ USB PC Connectivity
✔ Multiple RF Instruments in One Platform
✔ Professional RF Measurement Software
✔ Easy Calibration
✔ Space Saving Design
✔ Cost Effective RF Laboratory
✔ Suitable for Education and Industry
Integrated Instruments
Vector Network Analyzer (VNA)
Designed for accurate RF network measurements.
Functions
- S11 Measurement
- S21 Measurement
- S12 Measurement
- S22 Measurement
- Smith Chart
- VSWR
- Return Loss
- Cable Loss
- Filter Testing
- Antenna Matching
Software Defined Radio (SDR)
A flexible RF transceiver platform for communication experiments and wireless development.
Applications
- Wireless Communication
- Signal Processing
- SDR Research
- Spectrum Monitoring
- Protocol Development
- RF Education
Oscilloscope
Capture and analyze electrical signals in both time and frequency domains.
Applications
- Waveform Analysis
- Signal Integrity
- Embedded Systems
- Digital Electronics
- RF Baseband Testing
Technical Specifications
VNA | Vector Network Analyzer
| Parameter | Specification |
|---|---|
| Frequency Range | 100 kHz – 6 GHz |
| Test Ports | 2 Ports |
| Measurement Parameters | S11, S21, S12, S22 |
| Impedance | 50 Ω |
| Measurement Bandwidth | 10 Hz – 50 kHz |
| Dynamic Range | >95 dB (<1 GHz) |
| Dynamic Range | >90 dB (>1 GHz) |
| Measurement Points | 2 – 4501 |
Spectrum Analyzer
| Parameter | Specification |
|---|---|
| Frequency Range | 100 kHz – 6 GHz |
| Resolution Bandwidth | 13 Hz – 112 kHz |
| Phase Noise | −100 dBc/Hz @ 1 GHz, 10 kHz offset |
RF Signal Generator
| Parameter | Specification |
|---|---|
| Frequency Range | 100 kHz – 6 GHz |
| Output Power | −60 dBm to 0 dBm |
SDR Transceiver
| Parameter | Specification |
|---|---|
| Frequency Range | 70 MHz – 6 GHz |
| TX/RX | 1 × 1 |
| Instantaneous Bandwidth | Up to 56 MHz |
| ADC/DAC Resolution | 12-bit |
| Maximum Sampling Rate | 61.44 MS/s |
| TX Output Power | >10 dBm |
| IIP3 | −21 dBm |
| Noise Figure | <8.5 dB |
| LO Accuracy | ±2 ppm |
Oscilloscope
| Parameter | Specification |
|---|---|
| Bandwidth | 25 MHz |
| Sampling Rate | 200 MS/s Real-Time |
| Sampling Rate | 4 GS/s ETS Mode |
| ADC Resolution | 8 bits |
| Channels | 2 |
Function Generator + AWG
| Parameter | Specification |
|---|---|
| Function Generator | DC – 100 MHz |
| AWG Memory Depth | 4 kS |
| AWG Resolution | 12 bits |
| Output Signals | Sine, Square, Triangle, Ramp, Arbitrary, etc. |
