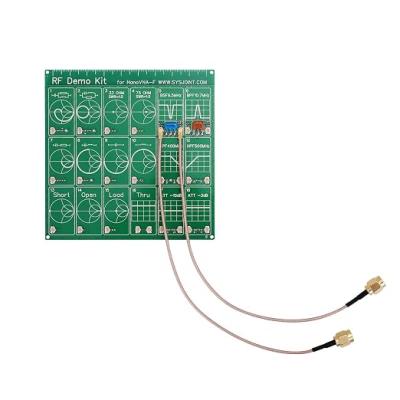

Decdeal RF Demo Kit

Description:

The Nano VNA RF Test Board is specifically designed for learning vector network analyzer (VNA) calibration and understanding. It serves as an essential tool for students, enthusiasts, and professionals in the field. Expand your knowledge and skills with our versatile and educational demo kit.

The Frequency Test board features RC and LC series circuits, as well as standalone capacitance and inductance components. Additionally, it includes a self-made low pass filter (LPF) with a 3dB bandwidth of 400MHz and a high pass filter (HPF) with a 3dB bandwidth of 500MHz. Experience exceptional frequency control and filtering capabilities.

Frequency Test Board Demo Kit, Our RF tester board offers various calibration circuits and attenuation options. This includes short circuit calibration, open circuit calibration, 50-ohm load calibration, straight-through connections, as well as 10dB and 3dB attenuation circuits. Enjoy and accurate measurements, calibration, and controlled attenuation with ease.

RF Demo Kit Quick Start Guide: https://metixrf.com/media/files/bf2572963e23536237aa766222a33c4d2606684f/b5

Specifications:

Material: PCB
Color: green
RLC series and parallel circuit 1
RLC series and parallel circuit 2
33 ohm resistance, SWR=1.5
75 ohm resistance, SWR=1.5
BSF ceramic notch filter, center frequency 6.5 MHz
BPF ceramic filter, centre frequency 10.7 MHz
RC series circuit
LC series circuit
Capacitor
Inductance
Homemade low-pass filter, 3dB bandwidth 400 MHz
Homemade high-pass filter, 3dB bandwidth 500 MHz
Short-circuit calibration circuit
Open-circuit calibration circuit
50 ohm load calibration circuit
Straight-through
10dB attenuation circuit
3dB attenuation circuit
Each set of functional circuits
Item size: 100 * 100mm / 3.9 * 3.9in
Item weight: 38g
Package size: 159 * 152 * 52mm / 6.3 * 6.0 * 2.0in
Package weight: 65g


Features:

• RF Demo Kit  is a vector network analyzer learner tool.
• Vector Network Analyzer (VNA) is Made of fine quality material, is practical, and has a long service life.
• RF Measurements is Compact and lightweight, easy to operate and use.

Package Included:

1 x Nano VNA RF Test Board Frequency Test Board Filter Attenuator Module Frequency Test Board Demo Kit  For Vector Network Analysis Filter and Attenuator Testing Vector Network Analyzer
