LiteVNA 64
Vector Network Analyser
Guaranteed Safe Checkout:
Details
The LiteVNA is a portable 50 kHz - 6.3 GHz vector network analyzer which design is based on the NanoVNA and SAA2. This vna is designed to measure equipment reflection and transmission coefficients without the need for a large analyzer. The LiteVNA uses one mixer which enables S11 and S21 measurements through RF switching and TDR/DTF measurements through IFFT calculations.
The analyser has a 3.95" touch-screen display that can show the measurements in 10-1001 data points. Furthermore, the analyser has a built-in 2000 mAh battery and can be connected to an android phone or PC. Connecting to a phone or PC allows for controlling the analyser and displaying the measurements.
Model overview
| Model | LiteVNA 62 | LiteVNA 64 | LiteVNA 67 |
|---|---|---|---|
| Battery | 1300 mAh | 2000 mAh | 7800 mAh |
| Connectors | SMA | SMA | N-type |
| Dynamic range | >70 dB (50 kHz - 3 GHz) >50 dB (3 - 6.3 GHz) | >90 dB (50 kHz - 3 GHz) >70 dB (3 - 6.3 GHz) | >100 dB (50 kHz - 3 GHz) >80 dB (3 - 6.3 GHz) |
| Source attenuator | No | No | Yes |
Specifications
| Frequency range | 50 kHz - 6.3 GHz |
| Dynamic range | >90 dB (<3GHz) >70 dB (≥3GHz) |
| S11 noise floor | <-50 dB (<3GHz) <-40 dB (≥3GHz) |
| Frequency stabilit | <0.5ppm |
| Sweep rate | >1700points/s (dual channel) |
| Sweep points | 10-1001 points (device) 1-1024 points (USB) |
| Display | 3.95" TFT LCD Touch-screen (480x320) |
| Power | Li-polymer 2000 mAh battery (USB charged) |
Support
The LiteVNA is a live project. More information and discussions can be found on the Wiki page.
Accessories

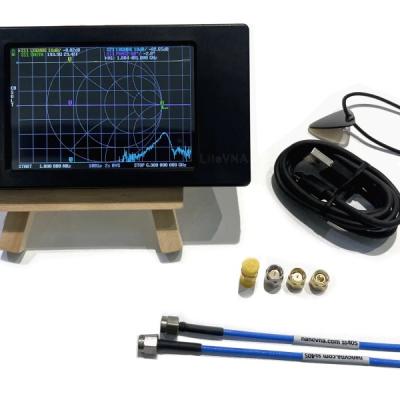

The LiteVNA comes by default with:
- USB cable
- 2x 30cm SMA MALE-MALE SS405 RF cable
- SMA MALE calibration kit OPEN
- SMA MALE calibration kit SHORT
- SMA MALE calibration kit LOAD
- SMA FEMALE-FEMALE connector
Pros
- Big frequency range
- Can be used from PC/phone (android)
Downloads
| LiteVNA user manual |  (1.08 MB) | Download |
