vector network analyser

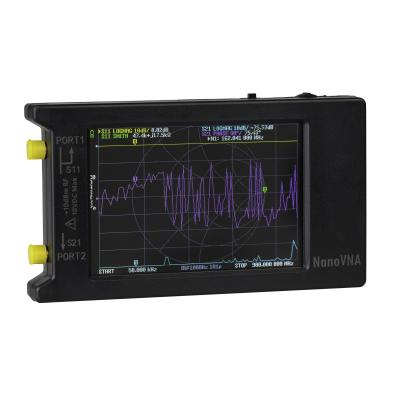

The NanoVNA-H4 is a portable 10 kHz - 1.5 GHz vector network analyser designed to measure reflection and transmission coefficients of equipment without the need for a large analyser. The analyser has a 3.95" touch-screen that can show the measurements in 101 points. Furthermore, the NanoVNA-H has a built in 1950 mAh battery and can be connected to an android phone or PC via USB(-C). Both an WebApp for google chrome and an Android app are available controlling the analyser and displaying measurements.

There are many different versions in circulation, we sell the original NanoVNA-H4 by Hugen. The designer of this NanoVNA-H4 has made an elaborate Wiki page with all guide steps and more information. You can find this page here. The NanoVNA-H4 is compatable with several software packages, windows users are advised to use nanoVNA-app, linux and macos users are advised to use nanoVNA-saver

The NanoVNA-H with 2.8" touch-screen can be found here.

Specifications

Caution! The NanoVNA only works with MicroSD cards <32GB.

Accessories

The NanoVNA-H4 comes by default with:

• USB type-c cable
• 2x 15 cm SMA male-male TG316 RF cable
• SMA MALE calibration kit OPEN
• SMA MALE calibration kit SHORT
• SMA MALE calibration kit LOAD
• SMA FEMALE to FEMALE connector
• Type-c to Type-c cable

Downloads

NanoVNA user guide	(695.6 KB)	Download
NanoVNA beginners guide	(3.59 MB)	Download
